Spantech Woomera 300
New Zealand’s most versatile structural profile
With proven applications in education, agriculture and Defence, the Spantech Woomera 300 profile offers architects wide scope for creative design.
Key Features
Highly versatile construction profile
Available as a straight or curved profile
Unique profile shape designed for ultimate strength and to maximise the life of the material
Significantly reduces the amount and complexity of structural steel and the number of footings in buildings
Curved profile spans up to thirty meters*
Straight profile spans up to seven metres*
Generous cantilevered eaves
Manufactured on-site to any length
Fast and easy to install
Save construction time and reduce overall costs
A unique interlocking connection with minimal fasteners for a strong, durable, watertight connection
Extensive range of engineered connections, accessories and options
Comprehensive design assistance available to Architects and Engineers
Engineering Certification service is included, if required
Installation service available, if required.
* Spans above are for non-cyclone regions, and subject to Engineering design and approval.
Woomera 300 PROFILES

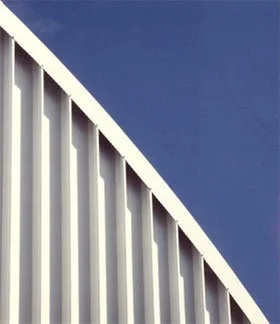

STRAIGHT
BOLD STANDING SEAM ROOF AND WALL Profile
Spantech Woomera 300 straight profile is ideal for skillion roofs, walls and composite formwork.
The straight profile is manufactured on-site with a mobile rollform machine. It is rolled in the first stage of roll forming to any length required for the project.
Specifications
Base metal thickness: 1.0 mm
Max. straight profile span: 7 metres*
Nominal cover: 303 mm

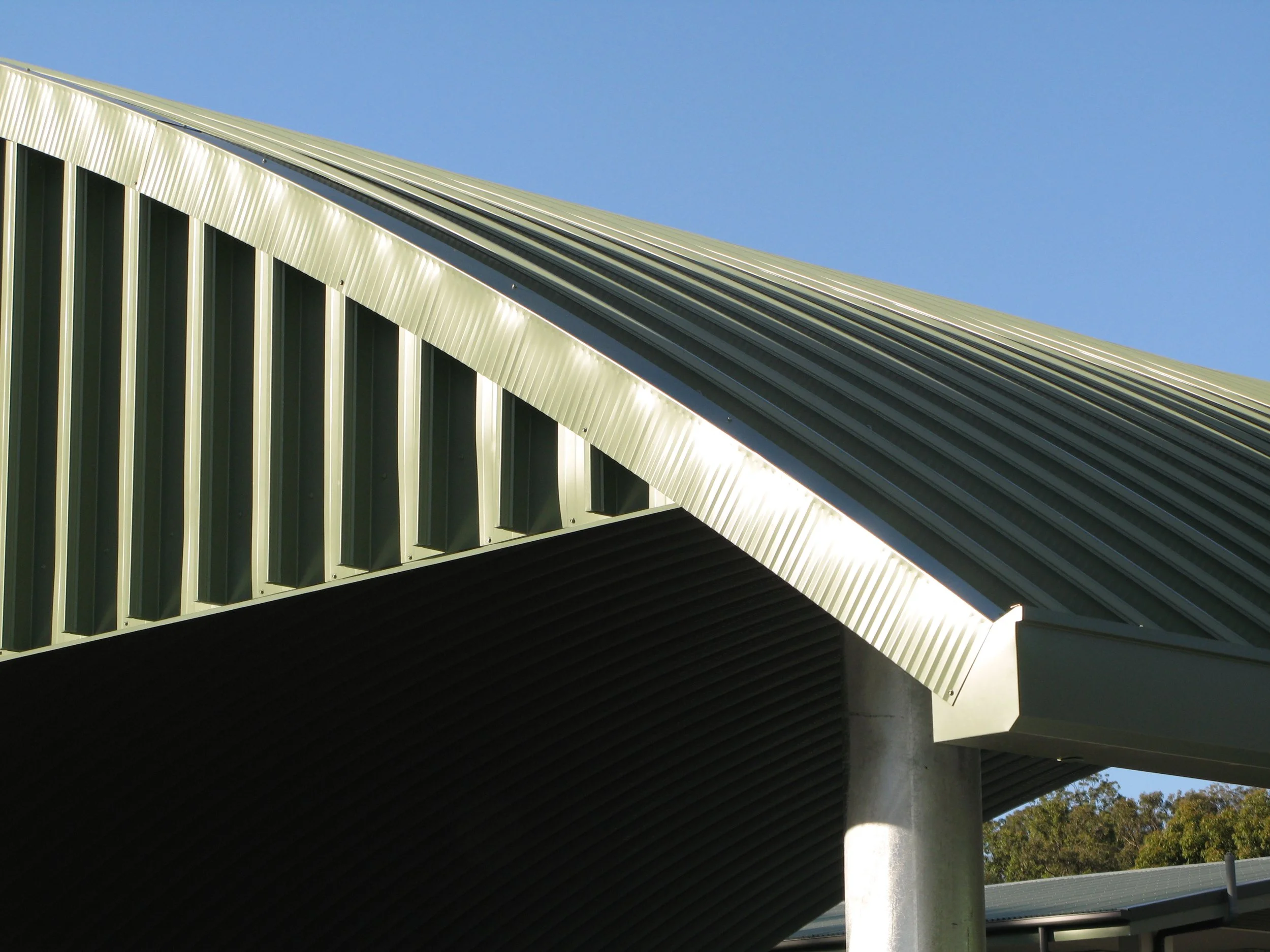

CURVED
SPANTECH’S MOST VERSATILE CURVED Profile
Spantech Woomera 300 curved profile is used for free-span curved roofing, ground to ground buildings, and earth covered buildings.
The curved profile is formed in the second stage of roll forming.
Specifications
Base metal thickness: 1.0 mm
Max. curved profile span: 30 metres*
Nominal cover: 303 mm
Recent Woomera 300 Projects
More Information
Technical data for Woomera 300 and Pinkenba 370 is available to registered architects, engineers and specifiers.
About the name
The “Woomera 300” name was inspired by the series of full-scale explosive trials conducted on Spantech Earth Covered Buildings (ECB) at the Woomera Rocket Range. Spantech ECB are now used by Defence Departments around the world to safely store munitions, guided weapons and explosive ordnance.
