Spantech Longreach
IntroducING LONGREACH
Spantech Longreach is an innovative long-span metal roofing and wall cladding system.
Longreach is a premium, feature-packed system specifically designed for large-scale commercial projects.

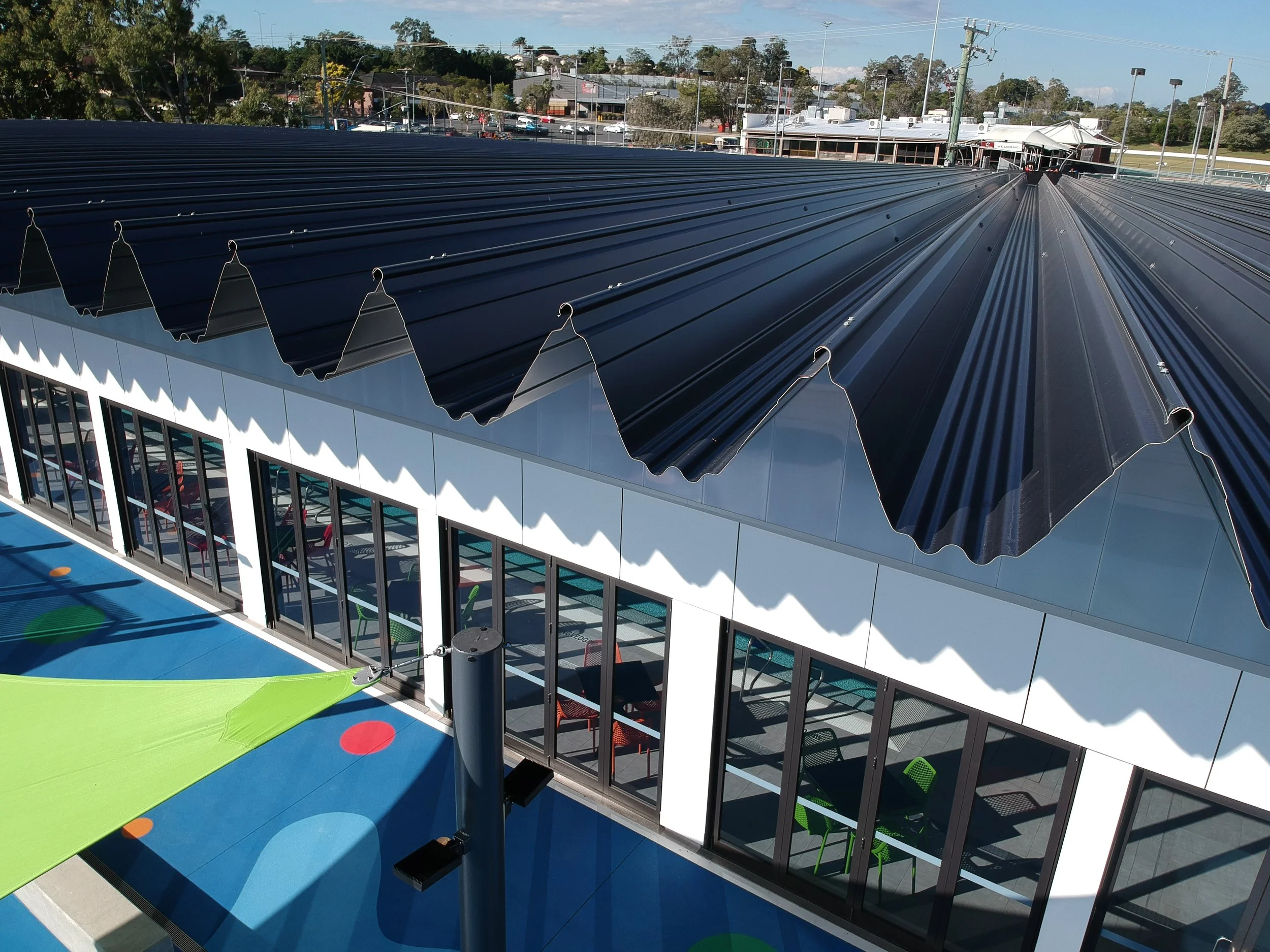

Spantech Longreach 650 was used to build the unique tapered roof for the Beenleigh Aquatic Centre.
Key Features
Distinctive, bold, deep profile
Unique profile shape designed for ultimate strength and to maximise the life of the material
Large free-spans to significantly reduce the amount and complexity of structural steel and the number of footings in buildings
Free-spans up to twenty meters*
Five meter* wide cantilevered eaves
Variable cover widths from 580mm to 900mm
Manufactured on-site to any length
Available in steel or aluminium
Fast and easy to install
Save construction time and reduce overall costs
A unique interlocking connection with minimal fasteners for a strong, durable, watertight connection
Can be sprung curved or tapered to achieve irregular shapes
Extensive range of engineered connections, accessories and options
Comprehensive design assistance available to Architects and Engineers
Engineering Certification service is included, if required
Installation service available, if required.
* Spans and cantilevers above are for non-cyclone regions, and subject to Engineering design and approval.
Longreach Profiles
Make a bold statement

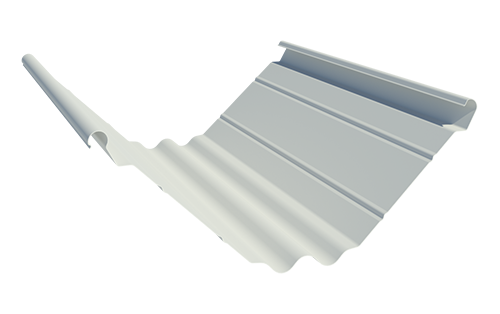

Spantech Longreach 800 adds architectural appeal and distinctive bold lines to any commercial roofing project.
Specifications
Maximum span: 17 metres*
Maximum cantilever: 4.25 metres*
Cover: 720 mm to 900 mm*
Long spans, less structural steel
Ideal for large-scale commercial projects with long spans and wide eaves.
Specifications
Maximum span: 20 metres*
Maximum cantilever: 5 metres*
Cover width: 580 mm to 720 mm*
Flat BaseD OPTIONS
FLAT BASE
Clean simple lines
Developed for gutters the Flat Base range can also be used for roofs and wall cladding.
Specifications
Maximum span: 8.5 metres*
Maximum cantilever: 2 metres*
Cover: 765 mm to 945 mm*
FLAT BASE
Stretch a little further
Take all the advantages of the Longreach 800 Flat Base, and push those clean lines just a little further.
Specifications
Maximum span: 10 metres*
Maximum cantilever: 2.5 metres*
Cover width: 625 mm to 765 mm*
THE SPANTECH LONGREACH DIFFERENCE
LONGREACH WAS DESIGNED FOR MAXIMUM PERFORMANCE AND EFFICIENCY, PUTTING IT IN A CLASS OF ITS OWN
Profile shape
The rollformed shape of the Spantech Longreach includes subtle curved details. This provides additional strength and minimises rollforming stress on the material coating to ensure a long life.
The curves in the base of the profile reflect the shape of traditional CustomOrb® so the Spantech Longreach integrates with a range of readily available roofing accessories and complimentary profiles such as CustomOrb® and MiniOrb® .
Less fasteners
Spantech Longreach profiles are connected to each other via a unique interlocking seam. It securely connects the profiles together without fasteners. The connection is strong, watertight and requires no penetrations in the profile. Similar systems require roofing screws at 500mm centres which can cause leaks, corrosion, and expansion/contraction noise.
Additional benefits of minimising fasteners:
Spantech Longreach is faster to install, making it more cost effective
There are less penetrations in the roof reducing the risk of leaks
During installation minimal swarf is generated, the by-product of drilling into metal that can damage the material finish.
Watertight connections
Spantech Longreach is connected to structural supports through a flat zone in the profile ‘rib’ to ensure a watertight seal. This is very important for long-span profiles with significant expansion and contraction. Similar profiles are secured through a corrugated zone of the profile rib, so fasteners are typically either overtightened - affecting expansion and contraction, or under tightened - causing leaks.
Design resources
Spantech has an extensive collection of pre-engineered standard details to suit most common applications.
However, if you need a project-specific solution, Spantech has an in-house design team to help our clients realise their vision and develop bespoke solutions that suits the project and the budget.
This service is free to registered Architects, Engineers and industry professionals.
Engineering service
Spantech includes an engineering design and certification of our products in all our quotes.
We also offer engineering guidance at each stage of design. This assures Architects that their design can be achieved with issues resolved early in the design phase to avoid delays and unnecessary costs.
Value for money
Spantech’s package price includes roof Engineering service (as described above), all equipment and transport, on-site or off-site manufacturing (as applicable), all accessories and fasteners.
We provide this comprehensive and transparent package to remove all hidden costs. It ensures that the Builder, Roofing Contractor and Client do not receive any unplanned variations.
The value in our approach is evidenced by the significant number of projects Spantech is being awarded through competitive tenders, where the Spantech Longreach profile is proving to be extremely cost effective.
Installation
Spantech can install the products we supply, with our crews regularly working all over New Zealand and Australia.
Alternatively, Spantech can train and work with your preferred local Roofing Contractor to install our systems. If you do not already have a preferred contractor, we can recommend a local contractor who is trained and experienced with our systems.
Warranty
Spantech uses steel and aluminium specifically manufactured and imported for Spantech. It is guaranteed to meet New Zealand Standards and Spantech’s own stringent specifications.
As a result, Spantech can generally offer longer warranty periods and more favourable conditions to our Clients. The warranty Spantech provides is supported directly by the manufacturer.

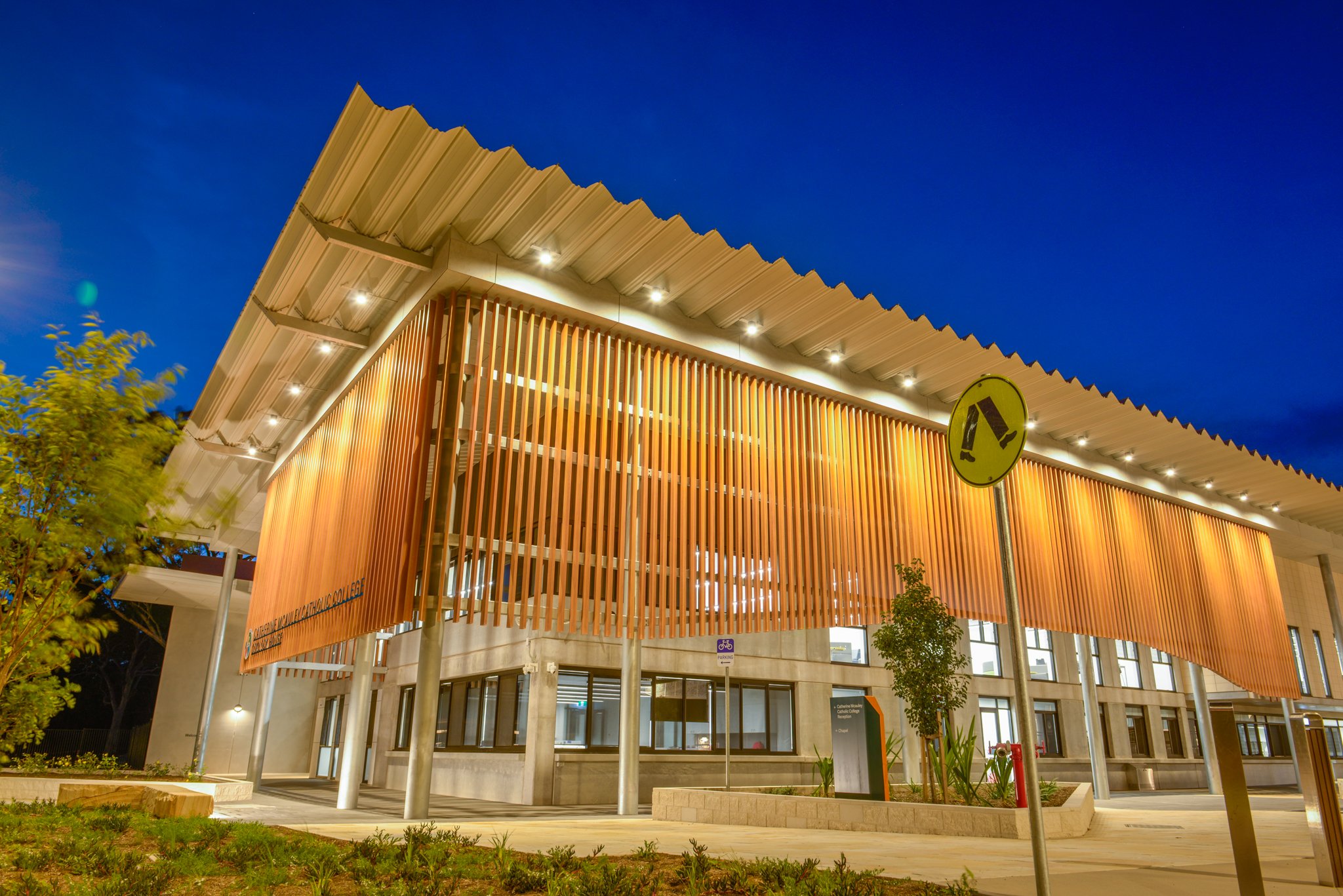

Recent Spantech Longreach Projects
More Information
The Longreach product brochure is available to registered architects, engineers and specifiers. Contact us to request a copy.
What’s in a Name?
The “Longreach” name was inspired by the Emu Street Car Park, Longreach, Queensland.
Designed by architect Chris Pritchett for the Longreach Regional Council, at the time, this was the only undercover public carpark in Longreach.
